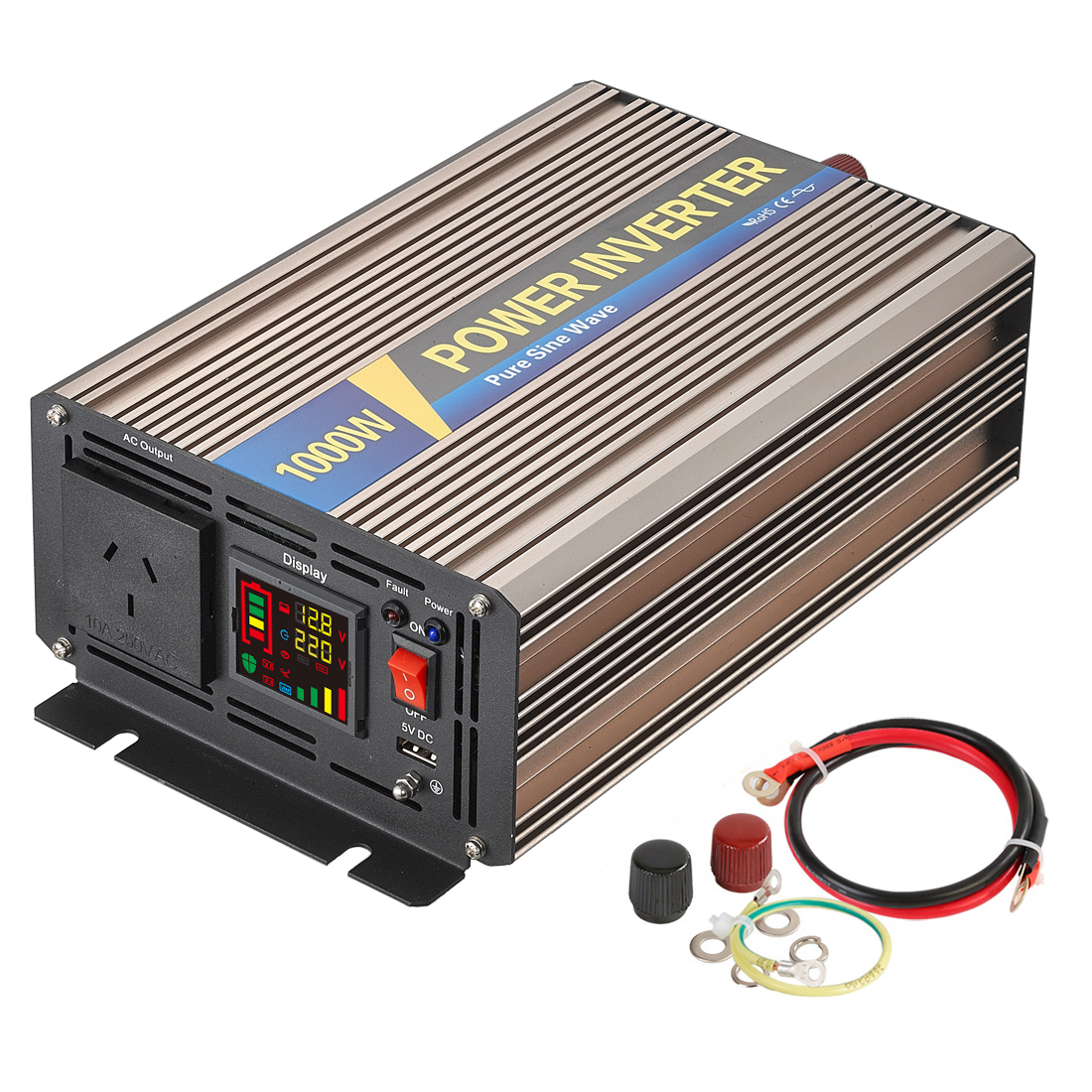

RS485 Pure Sine Wave Solar Power Inverter 1000w With LED Display

Brand Name : SUG

Model Number : SGPE-1000W

Certification : CE & ROHS & FCC & PSE

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 9000pcs/month

Delivery Time : 15 working days

Packaging Details : Carton

Model : SGPE-1000W

Rated Power : 1000W

Surge Power : 2000W

Input Voltage : 12V/24V/36V/48V/60V/72V/90V

USB Port : 5VDC

Output Voltage : 110/120/220/230/240VAC±5%

Output Frequency : 50/60HZ±3

Output Waveform : Pure Sine Wave

Efficiency : 94% Max.

Product Size : 28.6*16.5*9.2cm

Meas : 48*46*40cm/6pcs

N.W./Unit(kg) : 3.1kg

G.W./Ctn(kg) : 22kg

Type : DC/AC Inverters

Output type : Single

Warranty : 2 years

Application : Motor etc.,computer,Solar Controller System,TV,Solar Power System Home

Inverter type : Off Grid Inverter

Display : LED

Soft Start : Yes

Contact Now

1000W/1kw 12V/24V/48V DC to AC 110V/220V/230V Pure Sine Wave Solar Power Inverter

Introduction of the Inverter:

1. The rated power is 1000w with sufficient power and the peak power is 2000w

2. Pure Sine Wave Output

3. We have 10 yeas experience in making power inverters

4. It is with E-display, remote switch, RS485 communication, frequency switch optional parts

PROTECTION FEATURES:

Reliable design with thermal shutdown, reverse polarity protection via internal fuses, short circuit protection, over-voltage protection, low voltage shutdown, and low/high voltage alarm.

Products Specification:

Model	SGPE1000-121	SGPE1000-122	SGPE1000-241	SGPE1000-242	SGPE1000-481	SGPE1000-482
Rated Power	1000W
Surge Power	2000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5VDC
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	28.616.59.2cm (L×W×H)
Meas./Ctn	484640cm / 6pcs
N.W./Unit	3.1KG
G.W./Ctn	22KGS
Packing	box

RS485 Pure Sine Wave Solar Power Inverter 1000w With LED Display

Product Tags:

Pure Sine Wave Solar Power Inverter

Solar Power Inverter 1000w

RS485 Solar Power Inverter

RS485 Pure Sine Wave Solar Power Inverter 1000w With LED Display Images
