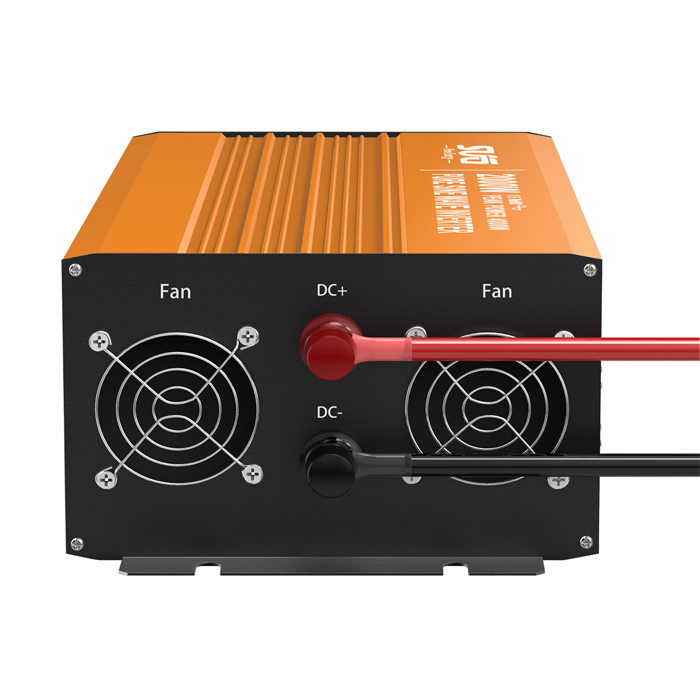

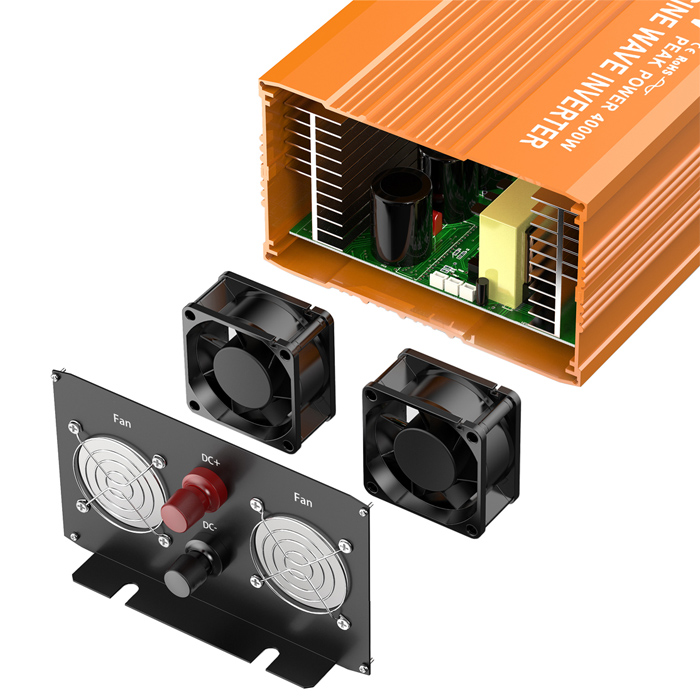

2000W 120VDC to 110VAC High Frequency off Grid Inverter
Description of the Products:
SGPR 2000W is high frequency pure sine wave inverter with E-display and remote switch.
Its rated power is 2000w and peak power is 4000w.
Pure sine wave output waveform
The peak power is twice as rated power
It is with soft start.
FAQ:
1.What is an inverter?
An inverter is a DC powered device that takes DC power (battery or solar, for example) and converts it into AC "household" power for running electronics/electrical equipment and appliances.
2.How is an inverter different from an UPS?
An UPS typically includes the battery and battery charger in one stand-alone unit. The input voltage window for UPS is comparatively less than that of inverter. However, there are UPS systems that use external batteries, and Power Stream makes inverters with battery chargers, so the differences blur as features proliferate.
Products Specification:
| Model | SGPR2000-121 | SGPR2000-122 | SGPR2000-241 | SGPR2000-242 | SGPR2000-481 | SGPR2000-482 |
| Rated Power | 2000W |
| Surge Power | 4000W(few seconds) |
| Input Voltage | 12VDC | 24VDC | 48VDC |
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5VDC |
| Frequency | 50Hz±3 or 60Hz±3 |
| Output Waveform | Pure Sine Wave |
| Soft Start | YES |
| AC Regulation | THD<3%(Linear Load) |
| Output Efficiency | 94% MAX |
| No Load Current | 1.4A | 0.8A | 0.3A |
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V |
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V |
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V |
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V |
| Cooling Way | Intelligent Cooling Fan |
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit |
| Working Temperature | -10ºC - +50ºC |
| Net Dimension | 37.3*16.5*9.2cm (L×W×H) |
| Meas./Ctn | 49*46*31.5cm/4pcs |
| N.W./Unit | 4.3KG |
| G.W./Ctn | 20KGS |
| Packing | box |
| Warranty | 2 Years |
Inverter Display:
Factory Display:
Product Tags:
|
|

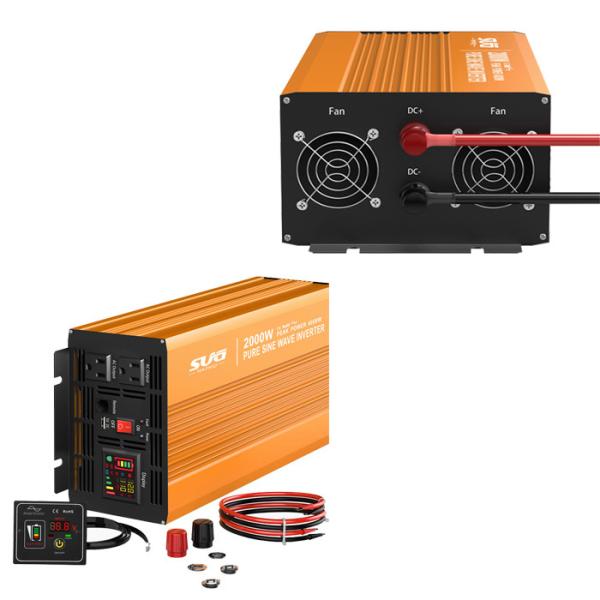

2000W 120VDC 110VAC PV Off Grid Inverter Soft Start Images
|
